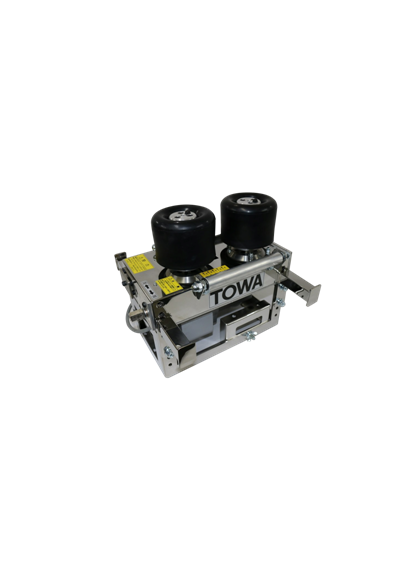

  TTB-MINI/OPII

khd 110 opⅡ thumb

TTB-MINI/OPII

How to use     Optimal for single core cable and narrow place. The
open and close of cabling ball is strict cause the shape of ball is
not standard(KHD-140/OP)and 110Ø size However, easy to use
cause light weight. Possible to combination use.

Product Explanation

Pushing power (kN)            2.16 (220kgf)
Speed (m/min)                    4.4 ~ 19.3 (30Hz ~120Hz)
Power                                    3 phase 220V (200W) 60Hz
Dimension (mm)                 W210 × L367 × H310
Frame dimension (mm)     W352 × L367 × H310
Cable size (mm)                   Ø1~65
Ball size (mm)                      Ø110
Weight (kg)                          19.0kg
maximum use possible       18EA
