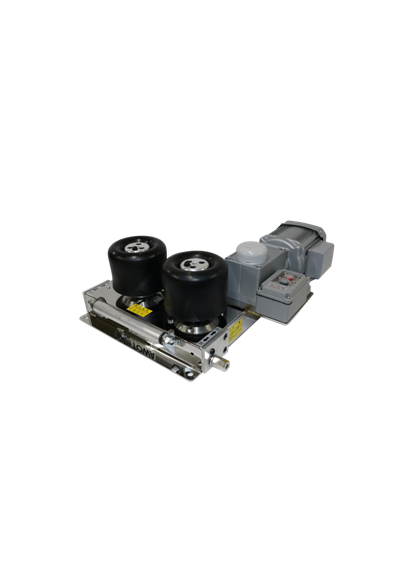

TTB-MINI/OP

khd 110 op thumb

TTB-MINI/OP

How to use  Optimal for single core cable and narrow place. The open
and close of cabling ball is strict cause the shape of ball is not standa
rd and 110Ø size However, easy to use cause light weight.

Product Explanation

Pushing power (kN)              2.16(220kgf)
Speed (m/min)                      4.4 ~ 19.3(30Hz~120Hz)
Power                                      3 phase 220V (200W) 60Hz
Dimension (mm)                   W418 X L466 X H160
Cable size (mm)                     Ø1~65
Ball size (mm)                        Ø110
Weight (kg)                           26.0kg
Maximum use possible        18EA
