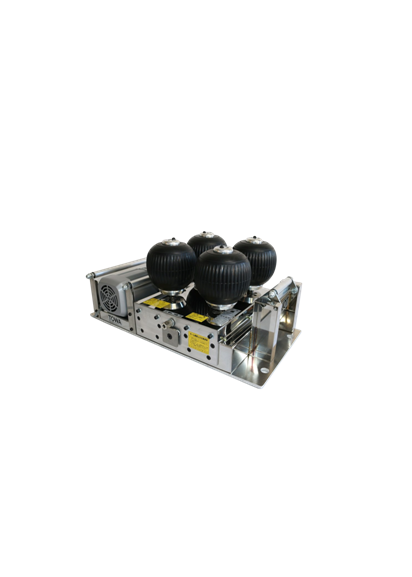

  TTB-400-4WD/OPIII

khd 140 opⅢ thumb

TTB-400-4WD/OPIII

Optimal product to laying, duct cabling. Use for optical
cable. Ball size 140Ø

Product Explanation

Pushing power (kN)             3.92 (400kgf)
Speed (m/min)                     4.4 ~19.3 (30Hz ~120Hz)
Power                                     3 phase 220V (400W) 60Hz
Dimension (mm)                   W385 X L650 X H290
Cable size (mm)                    Ø1~110
Ball size (mm)                        Ø140
Weight (kg)                           45.0kg
Maximum use possible        9EA
