  TTB-230/OPII

img0797 thumb

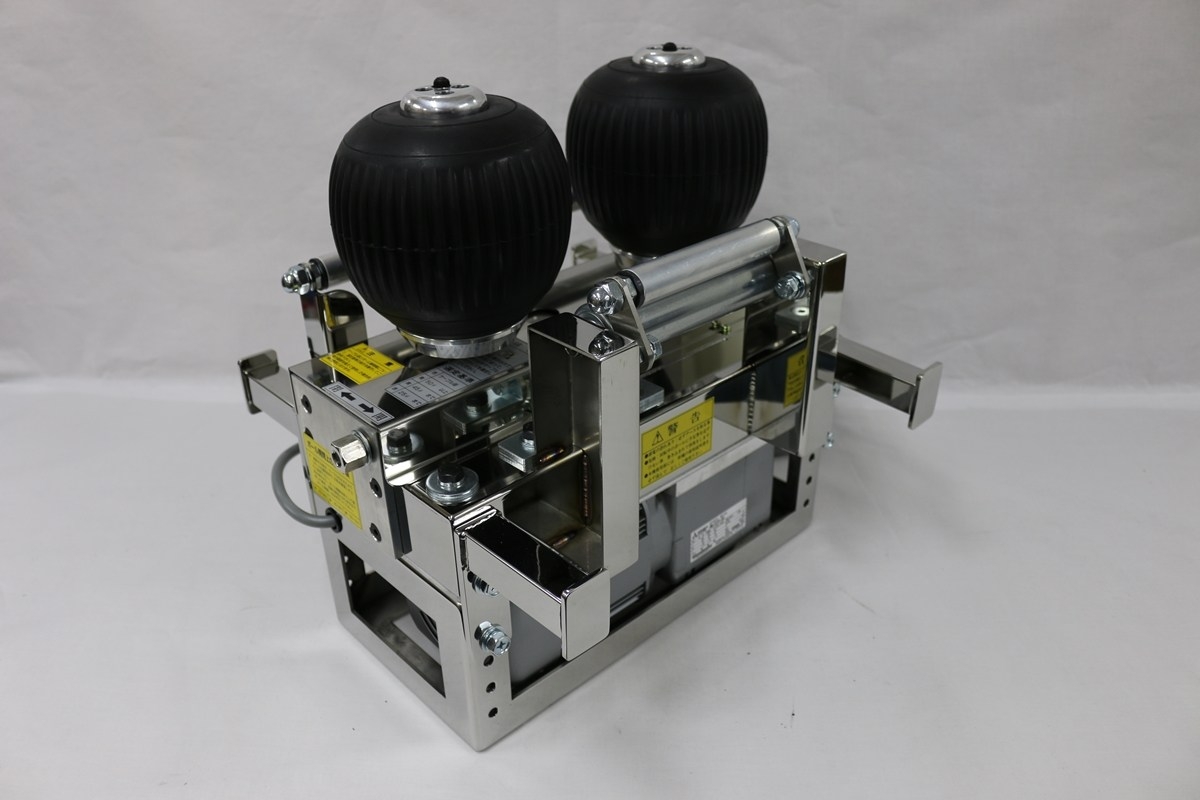

TTB-230/OPII

Easy to move and install on narrow place. Combine several devices
on Rack, Duct, pipe conduit pit if can not install the TTB-400-4WD-OP
device.


Product Explanation

Pushing power (kN)               2.16(220kgf)
Speed (m/min)                       4.4 ~19.3(30Hz ~120Hz)
Power                                       3 phase 220V (200W) 60Hz
Dimension (mm)                    W250 × L380 × H387
Frame dimensions                 W355 × L380 × H387
Cable size (mm)                      Ø1~100
Ball size (mm)                         Ø140
Weight (kg)                             24.0kg
Maximum use possible          18EA
