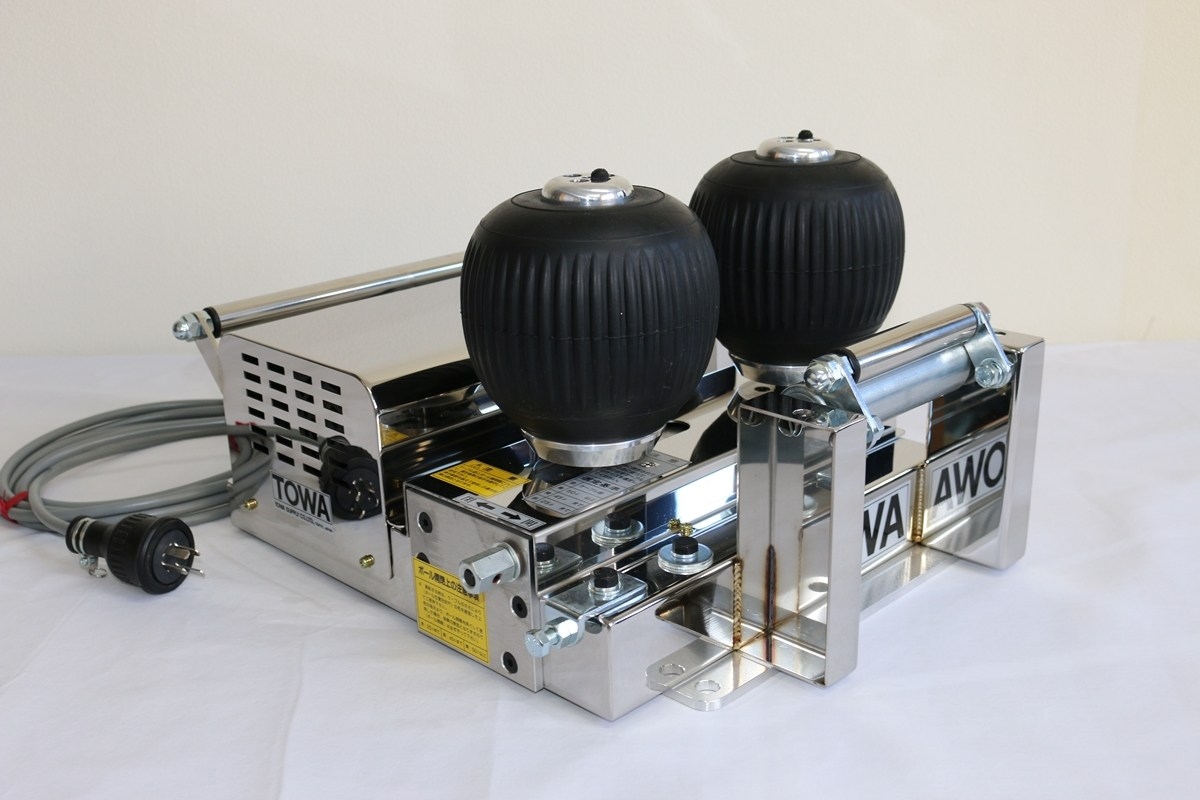

TMD-220/OP

img0879 thumb

TMD-220/OP

Standard type. Use to exist and new route include Rack,pipe conduit. Ball size 140Ø

Product Explanation

Pushing power (kN)              2.16 (220kgf)
Speed (m/min)                      4.4 ~19.3 (30Hz ~120Hz)
Power                                     3 phase 220V (200W) 60Hz
Dimension (mm)                  W385 X L456 X H264
Cable size (mm)                    Ø1~100
Ball size (mm)                        Ø140
Weight (kg)                           26.0kg
Maximum use possible        18EA
