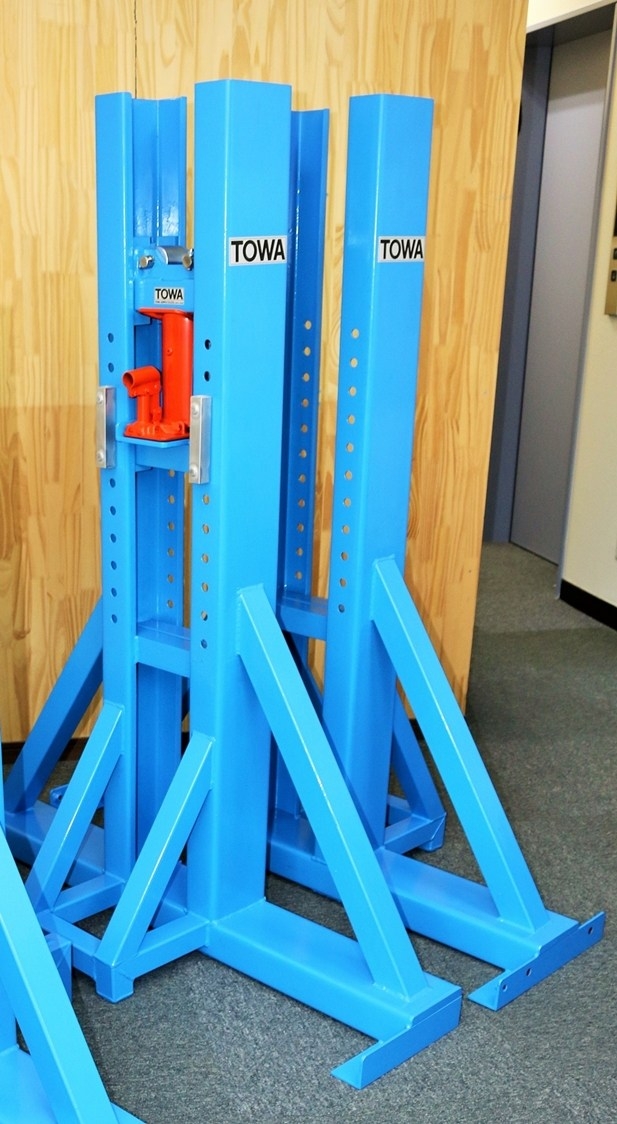

TDJ-2800

tdj2800 thumb

TDJ-2800

Weight is written on one side, and it is possible to separate the base, hydraulic pressure, and roller.
Shaft is φ101, wall thickness 25mm, weight 111kg, length 2500mm
After use, please keep the hydraulic opening and closing completely closed.

Product Explanation

For adaptive class                  10t
Lift (kN)                                  98
Lifting height (mm)              600
Drum radius (mm)                1000 to 1500
Outside dimensions (mm)   W515 x L1200 x H1500
Stand weight                          51.2kg
Hydraulic unit                       13.6kg
Roller weight                         9.0kg
Gross weight                          73.8kg
