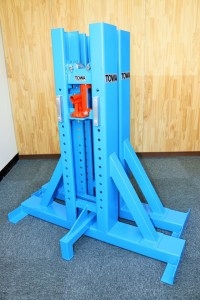

TDJ-2200

Weight is written on one side, and it is possible to separate the base, hydraulic pressure, and roller.
Shaft is φ76, wall thickness 15mm, weight 32.4kg, length 2300mm
After use, please keep the hydraulic opening and closing completely closed.

Product Explanation

For adaptive class                  5t
Lift (kN)                                  49
Lifting height (mm)              560
Drum radius (mm)                500 to 1200
Outside dimensions (mm)   W510 x L1150 x H1200
Stand weight                          37.4kg
Hydraulic unit                       9.4kg
Roller weight                         9.0kg
Gross weight                          55.4kg
